Hayward SP1700 Series Power-Flo II Pump Parts

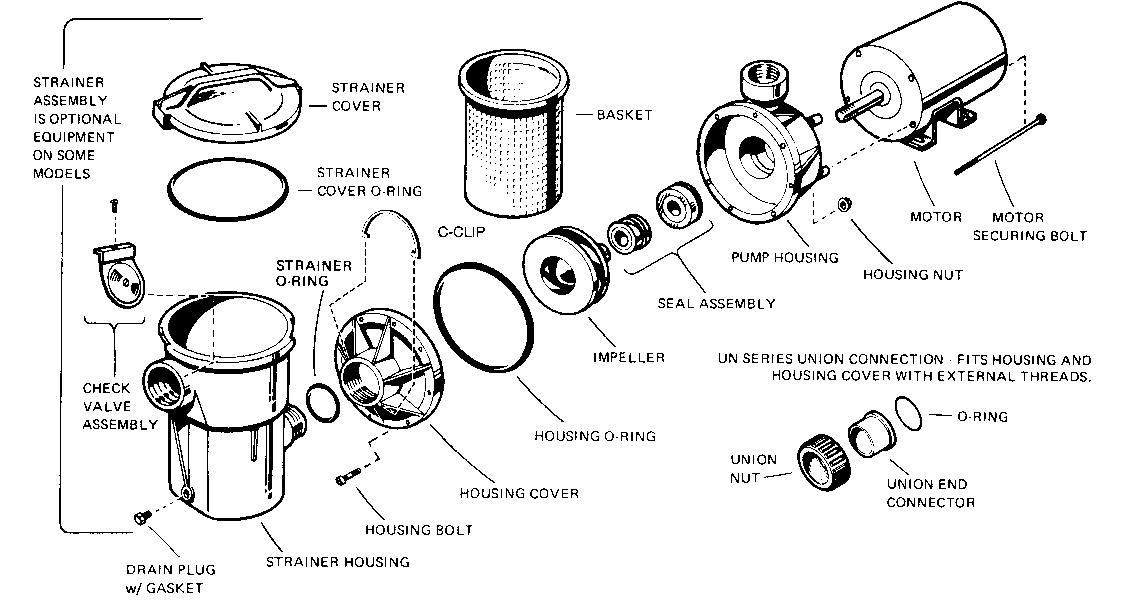

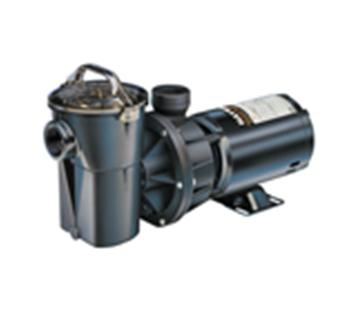

SP1700 SERIES POWER-FLO™ II PUMP
PARTS FOR PUMP MODELS: SP1705, SP1710, SP1711, SP1750, SP1775, SP1780

STOCK #          DESCRIPTION
SPX1500KA       Seal Assembly with Cup 49.75

SPX1500W       Strainer O-ring 5.75

SPX2607C          Impeller, (Power-Flo III, 1 HP) 57.25 * SPX2610C Impeller, (Power-Flo III, 1-1/2 HP) 58.80
SPX1500CAP     Strainer Housing w/Basket 127.00
SPX1500D2A     Strainer Cover, clear Lexan, with O-Ring 75.20
SPX1500P           Strainer Cover O-Ring — for clear cover 12.80

SPX1700FG        Drain Plug w/Gasket 7.45
SPX1495Z1          O-Ring, End Connector

Parts below are available by special order only.

STOCK #          DESCRIPTION
SPX1705AA        Pump Housing
SPX1705Z1         Housing O-Ring Gasket

SPX1500NY       Housing Bolt & Nut Set, No. 10-24 Hex. Head
SPX1705C           Impeller, 1/2 HP (SP1700 Series, Power Flo II)
SPX1707C           Impeller, 3/4 HP (SP1700 Series, Power Flo II)
SPX1250RA       Strainer Basket
SPX1515C           Strainer Housing C-Clip (2000-2003)
SPX1515CN        Strainer Housing C-Clip (2004 – )

SPX1500JS        Union End Connector — Socket

SPX1500G          Union Nut
