Hayward Perflex Filter Parts EC40, EC40AC
Item #See Below

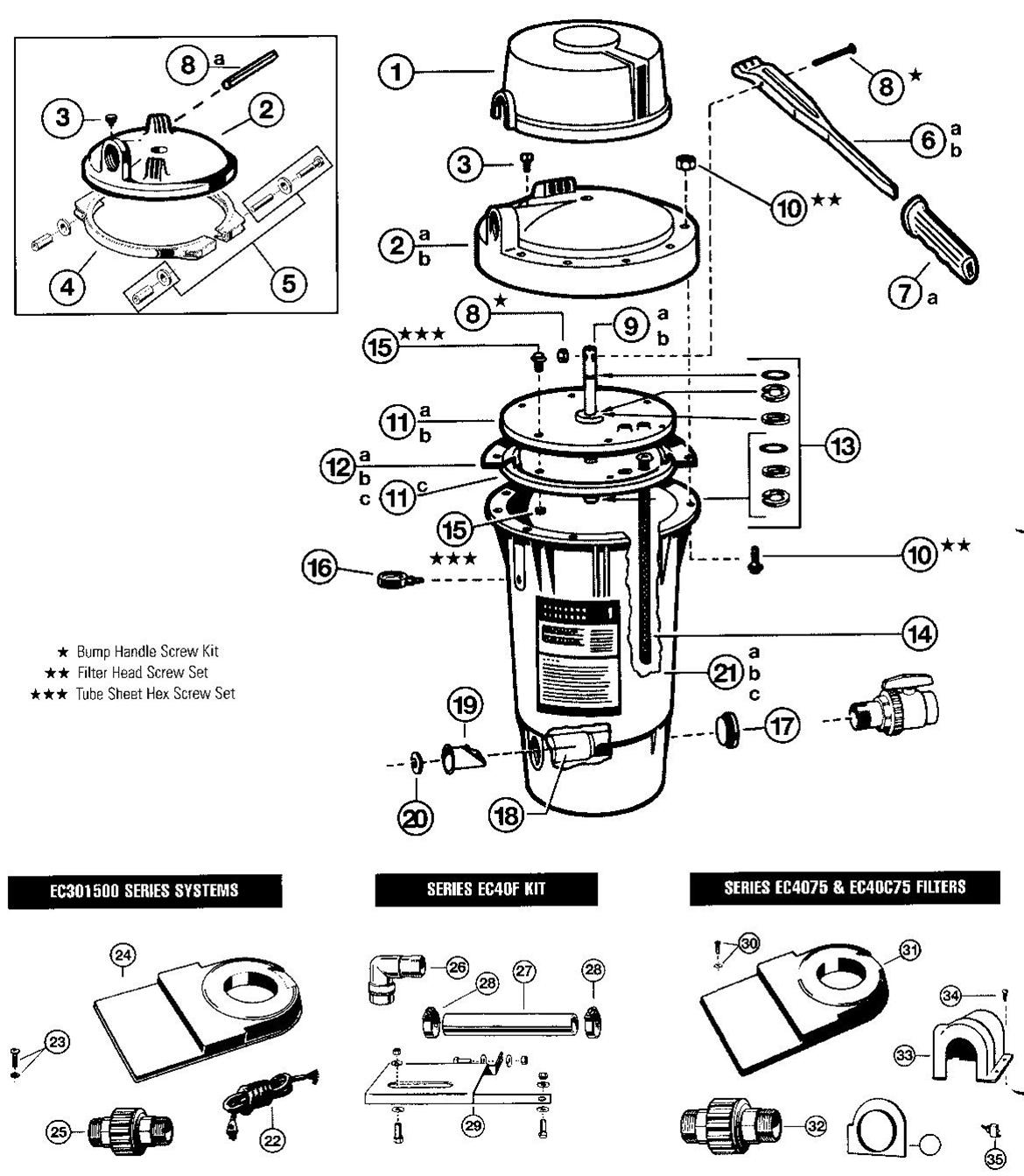

REF. # PART #/DESCRIPTION
6b ECX1040 Bump Handle Assembly-EC40/EC40AC 1 63.75
13 ECX1014A Bump Shaft KIt
14 ECX1031 Flex Tube Assembly (72 required for EC40/EC40AC)
15 SPX1500NYA Tube Sheet Hex Screw Set -EC30/EC40 (12 required)
16 ECX270861 Pressure Gauge
17 SP1022C Plug with Gasket
— SP0723 Ball-Type Drain Valve w/Nipple
19 ECX4077B1 Check Valve
SERIES EC4075 and EC4075UL FILTERS
32 SP1480BLK 1 1/2” Male Union
Parts Below Available by Special Order Only:
REF. # PART #/DESCRIPTION
1 ECX10066 Bump Mechanism Cover
2a ECX1131P* Filter Head with Vent Valve-EC30
2b ECX10334 Filter Head with Vent Valve -EC40
2c ECX5000BP Filter Head with Vent Valve-EC40AC
3 ECX1322A Vent Valve (Threaded) with O-Ring
4 ECX4000C Clamp Assembly with Hardware
5 ECX4000CHK Hardware Kit for Clamp Assembly
6a ECX1037A Bump Handle Assembly Grip-EC30
8 ECX4236A Bump Handle Screw Kit
8a ECX100Z9 Pivot Pin (Long)-EC40AC Only
9a ECX1009 Bump Shaft, 1/2”-EC30/EC40
9b ECX5000F Bump Shaft-EC40AC
10 ECX10271A Filter Head Screw Set -EC40 (12 required)
11a ECX1038 Tube Sheet (Bottom)-EC30 (top)-ECX1038A (2 required)
— ECX1004ASET Tube Sheet top & bottom
12a ECX1039 Diaphragm Gasket-EC30
12b ECX1003 Diaphragm Gasket – EC40
12c ECX5000G Diaphragm Gasket-EC40AC
18 ECX1256 Flow Diffuser with Check Valve
20 ECX1055 Flow Controller
— ECX1035 Flex-Tube Nest, (incls. 9, 11-15) — EC40 (2 required)
— ECX4035 Flex-Tube Nest, (incls. 9, 11-15) — EC40AC (2 required)
SERIES EC40F KIT
26 SPX1105Z4 1 1/2” Elbow Hose Adapter (2 required)
27 ECX27071 1 9/16” I.D. Clear Hose
28 ECX18028 Hose Clamp (2 required)
SERIES EC4075 and EC4075UL FILTERS
36 ECX1325 Switch Assembly
— SPX1250WA 6 Ft. Cord Set — no. 14/3 AWG
*For Ivory color drop the “P”; Limited Quantity Available.
