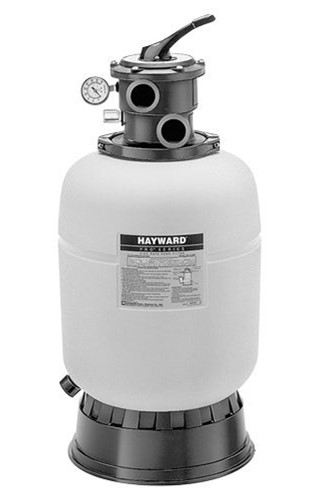

Hayward S210T, S244T Sand Filter Parts
Item #See Below

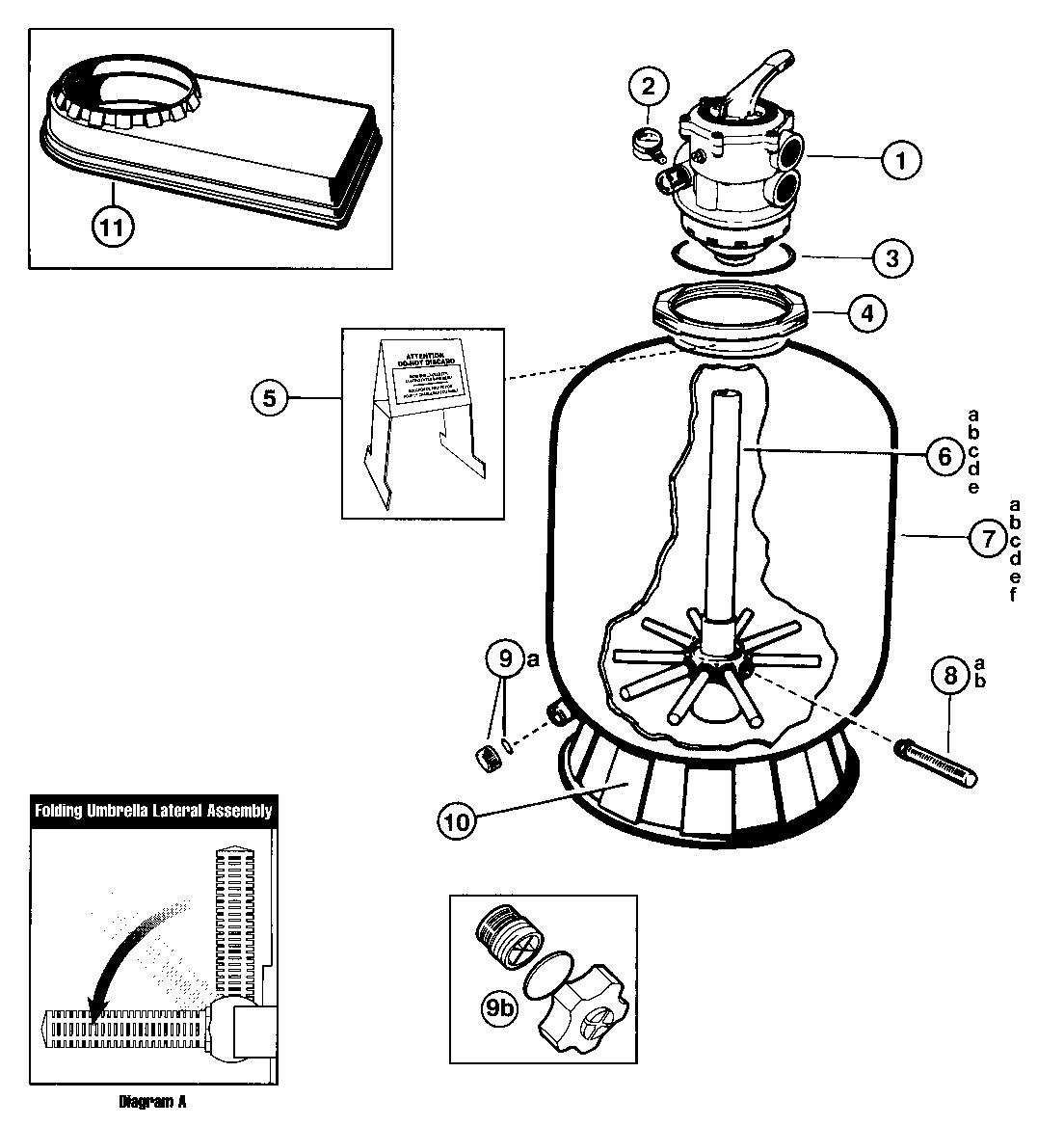

REF. # PART #/DESCRIPTION
— SP0714T Vari-Flo XL Control Valve – 1 1/2”
2 ECX270861 Pressure Gauge
3 GMX600F Valve/Tank O-Ring
4 GMX600NM Flange Clamp, Noryl
6b SX210DA Folding Lateral Assy w/Center Pipe (S210T 1997 – present )
6d SX244DA Folding Lateral Assy w/Center Pipe (S244T 1997 – present)
8a SX200Q Lateral (S-180T) (2004 and Prior) (10 req’d)
8b SX240D Lateral (S210T, S220T, S244T) (2004 and Prior) (10 req’d)
9a SX180HG Drain Cap & Gasket
Parts Below Available by Special Order Only
REF. # PART #/DESCRIPTION
5 SX202S Sand Shield (2004 Corrugated Design)
6a SX180DA Folding Lateral Assy w/Center Pipe (S180T 1997 – present)
8c SX200QN Lateral (one piece) w/Hub See Diagram A (10 req’d)
8d SX240DN Lateral (one piece) w/Hub See Diagram A (10 req’d)
9b SX180LA Drain Cap Assy. – Cap Gasket, Screen
10 SX200J Filter Support Stand (Skirt)
11 SX180K System Base – S-180T Systems
