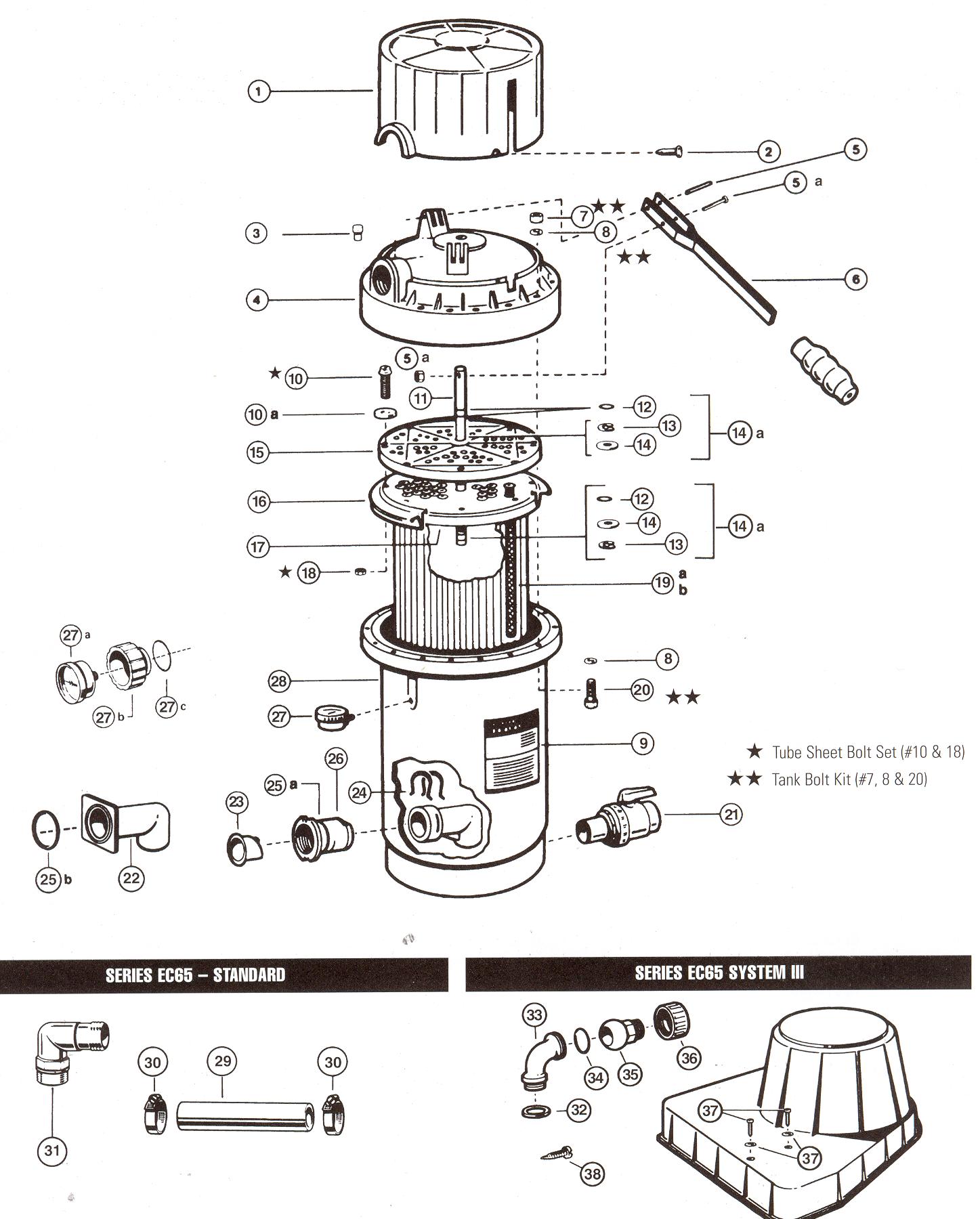

Hayward Perflex Filter Parts EC65, EC75

REF.#  PART #/DESCRIPTION
6             ECX1040 Bump Handle Assy.(W/Pin, shoulder screw & nut)
11            ECX1110 Bump Shaft
14a         ECX1014A Shaft Kit (includes 12, 13 and 14) (Shaft O-ring Kit, Retainer Clips (2), Thrust Washer)

16           ECX1105 Diaphragm Gasket

19a         ECX1031 Flex-Tube Assembly — 13 3/8” long (EC65), 120 required
19b         ECX1032 Flex-Tube Assembly — 16 1/4” long (EC75),120 required

21           SP0723 Ball-Type Drain Valve
23           ECX4077B1 Check Valve
25a         SPX1425Z6 O-Ring (1989 and prior)
25b         SPX1500W O-Ring (1990)
27           ECX2712B1 Pressure Gauge
27a         ECX27091 Pressure Gauge, Back Mount
—             SPX1500NYA Tube Sheet Bolt Set (Includes 10 & 18)

SERIES EC65 SYSTEM III
32           SPX1485C Gasket
33           SPX1485B Pump Discharge Elbow
34           SPX1425Z6 O-Ring
48           SPX1600Z52 Anchor Screw, 2 required

Parts Below are Available by Special Order Only:

REF.#  PART #/DESCRIPTION

1             ECX11206 Bump Mechanism Cover (brown)
3            ECX1322A Vent Valve (threaded) with O-Ring
4            ECX11194AT* Filter Head w/New Vent Valve (taupe)
5            ECX100Z9 Roll Pin,  2 required
5a          ECX4236A Bump Screw Kit

7            ECX1642A Tank Bolt Kit
8            ECX1077 1/4” X 1-1/16” O.D. Flat Washer, 30 required
10          SPX1500N1 Replace with SPX1500NYA —

12          ECX9611246 Replace with ECX1014A — 13 ECX1014 Replace with ECX1014A —
14          ECX1011 Replace with ECX1014A —

15 &17  ECX11034SET Replaces ECX1104 and ECX1103 Tube Sheet (top & bottom)

18          SPX1500Y1 Replace with SPX1500NYA

20          ECX1642215 Head Bolt – Replace with ECX1642A
22          ECX4220A Elbow Assembly w/Check Valve
24          ECX4212A Retainer Clip (1989 and prior), 2 required

26          ECX4201CA Inlet Fitting w/EC4077-B-1 Check Valve

27b        ECX12866 Gauge/Port Adapter
27c        ECX1287 Adapter O-Ring

28         ECX11184AT* Filter Body w/New Elbow Assembly

—           ECX1642A Tank Bolt Kit ( EC65, 75 – includes 7, 8 & 20)
—           ECX1251 Flex-Tube Nest (EC65) — incl. items 10 thru 19
—           ECX125175 Flex-Tube Nest (EC75) — incl. items 10 thru 19

SERIES EC65 — STANDARD
29         ECX27071 1 9/16” I.D. Clear Hose
30         ECX18028 Hose Clamp, 2 required
31          SPX1105Z4 1 1/2” Elbow Hose Adapter, 2 required

SERIES EC65 SYSTEM III
35          SPX1485A Union Ball End
36          SPX1480C Union Nut

37          ECX1161Z2 Pump Mounting Screw Set 2
* For Ivory color drop the “T”. Limited Quantity Available.
