Hayward SP1500 Series Power-Flo Pump Parts

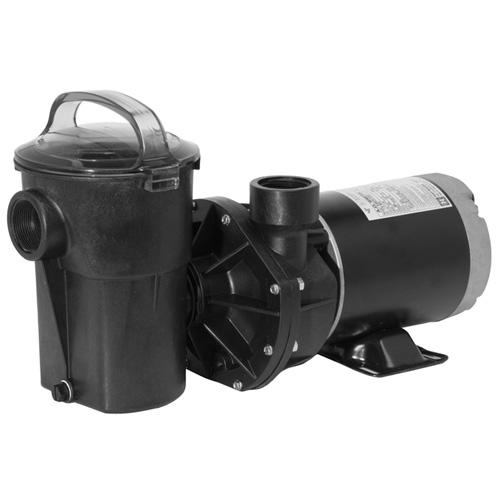

SP1500 SERIES POWER-FLO™ PUMP
PARTS FOR PUMP MODELS: SP1500, SP1510, SP1511, SP1550, SP1575, SP1580; AND PUMP STRAINER SP1515

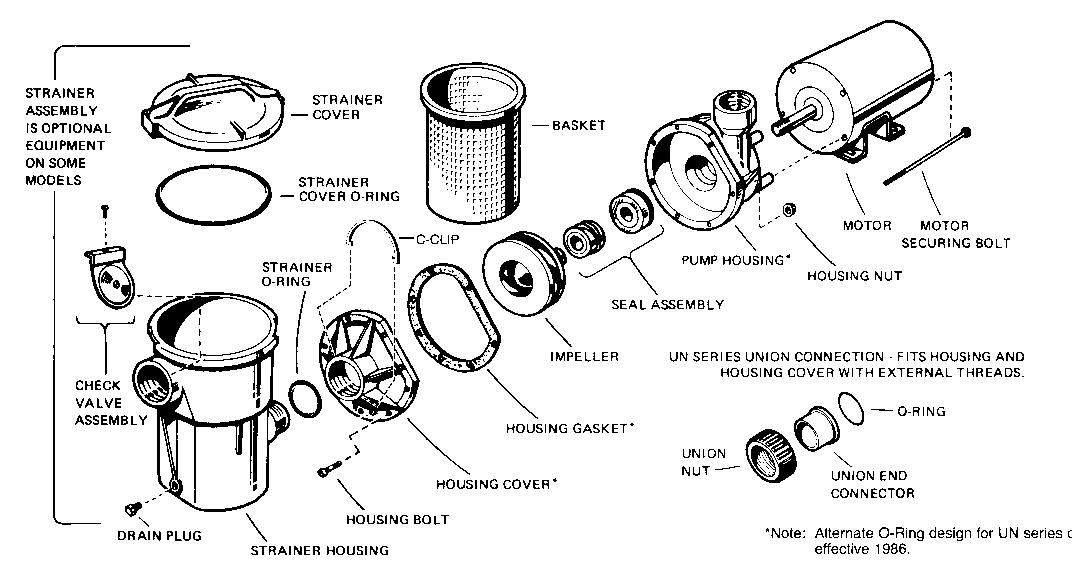

PART #           DESCRIPTION

SPX1500KA     Seal Assembly
SPX1500H       Housing Gasket
SPX1500F        Impeller, 3/4 HP
SPX1500CAP  Strainer Housing with Basket

SPX0710XZ3   Strainer Cover O-Ring — for solid cover (1978 and prior)
SPX1500D2A  Strainer Cover, clear Lexan, with O-Ring
SPX1500P        Strainer Cover O-Ring — for clear cover

SPX1500LX     Strainer Basket–Large, 4 1/2” x 7”
SPX1700FG     Drain Plug w/Gasket
SP1500UN Parts same as SP1500 Series except as listed below:
SPX1500L        Impeller, 1 H.P.

SPX1495Z1       O-Ring, End Connector

Parts below available by special order only.

PART #           DESCRIPTION

SPX1500NY     Housing Bolt & Nut Set, No. 10-24 Hex. Head

SPX1500E        Impeller,1/2 HP

SPX1250RA      Strainer Basket
SPX1500W       Strainer O-Ring

SPX1515C         Strainer Housing C-Clip (2000 – 2003)
SPX1515CN      Strainer Housing C-Clip (2004 – )

SP1500UN Parts same as SP1500 Series except as listed below:
SPX1500JS      Union End Connector — Socket
SPX1500G       Union Nut
