Hayward Skimmer Parts
Item #See Below

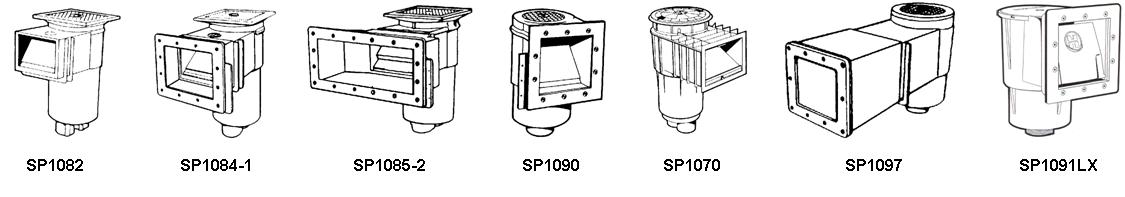

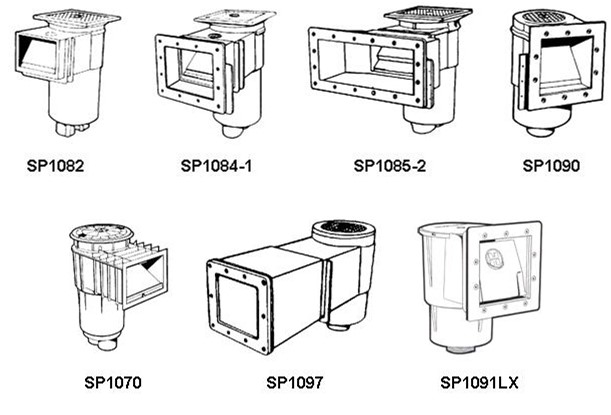

HAYWARD SP1070, SP1082, SP1084, SP1085, SP1083, SP1086 SKIMMERS
SPX1070C Cover Round
SPX1070E Basket
SPX1070KHR Weir Kit Assembly (SP1070-K)
SPX1082E Cover, square
SPX1082Z1 Cover Screw (square cover) Special Order
SPX1084R Cover, round
SPX1084Z9 Cover Screw (round cover) Special Order
SP1084P1 Extension Collar – round
SPX1082CA Basket, cycolac, 6-1/2” O.D. x 5”
SPX1082D Basket Support Ring
SPX1082K Weir
SPX1082H1A Slide Plate w/screw
SPX1084L Face Plate, cycolac (SP1084)
SPX1085B Face Plate, cycolac (SP1085)
SPX1084B Gasket (SP1084)
SPX1085D Gasket (SP1085)
SPX1084Z1A Face Plate Screw Set (SP1084) –Special Order
SPX1084Z4A Face Plate Screw Set (self-tapping style) — SP1084 -Special Order
SPX1084Z4AM Face Plate Screw Set —1 1/4” long (self-tapping style)
SPX1085Z1A Face Plate Screw Set (self-tapping style) — SP1085 –Special Order
SPX1085Z1AM Face Plate Screw Set — 1 1/4” long (self-tapping style) –Special Order
HAYWARD SP1090, SP1092 SKIMMERS
SPX1096CA Basket, cycolac, 5 1/8” O.D. x 3”
SPX1096B Cover
SPX1096K Weir
SPX1090D Face Plate
SPX1094G Gasket
SPX1030Z1C Face Plate Screw Set — 1 1/4” long (self tapping style) –Special Order
SPX1092C Access Plug –Special Order
HAYWARD SP1096, SP1097, SP1098 SKIMMERS
SPX1096B Cover
SPX1096AX Adjusting Collar –Special Order
SPX1096CA Basket, cycolac, 5 1/8” O.D. x 3”
SPX1096K Weir
SPX1097D Face Plate, cycolac (SP1097, SP1098) –Special Order
SPX0097E Gasket (SP1097, SP1098) –Special Order
HAYWARD SP1091LX, SP1091WM SKIMMERS
SPX1091C Basket with Handle
SPX1091D Face Plate Standard
SPX1091K1 Weir
SPX1091G Face Plate Gasket 5
SPX1091GW Wide Mouth Butterfly Gasket
SPX1090Z6A Standard Screw Set-SP1091LX
