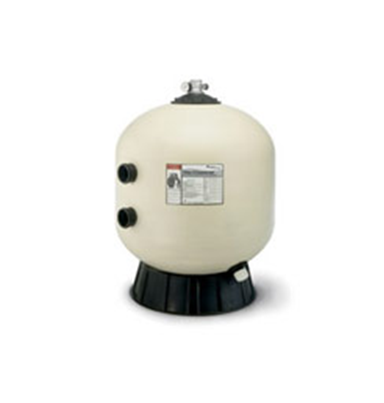

Pentair TR100C & TR140C Filter Parts- 8-1/2" Closure

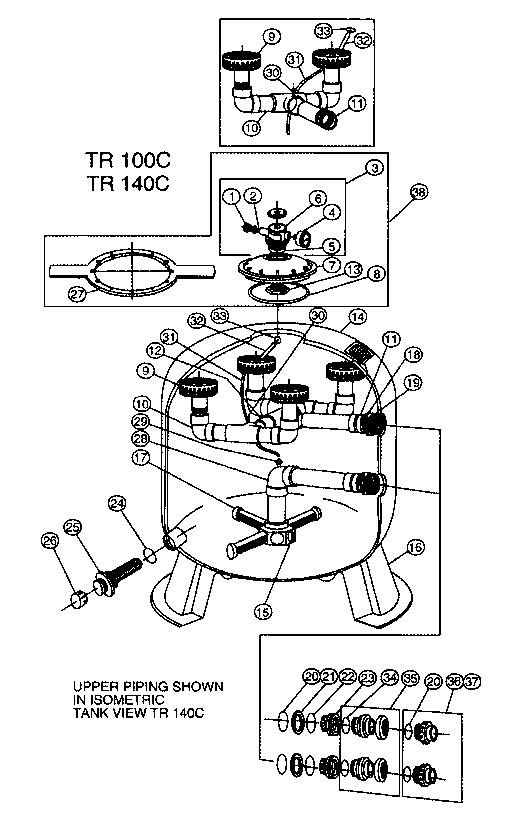

REF. #        PART#/DESCRIPTION

3                     273564 Manual air relief body assy.

6                     273564 Valve body machined
7                     154575 Closure 8-1/2” btr.
8                     152509 Square ring 8-1/2”

17                    15-2202 Lateral 9-1/8 in. TR-100C, 8 req.
17                    15-4540 Lateral 12 in. TR-140C, 8 req.

35                   27-1096 1-1/2 in. & 2 in. slid adapter kit for inst. w/o valve (pair)

38                   154856 Kit closure 8-1/2 in. btr. thd.-blk

Items below available by Special Order.

REF. #        PART#/DESCRIPTION

1                       273512 Air bleeder w/o-ring
2                      273513 O-ring bleeder screw
4                      190059 Pressure gauge
5                      274495 O-ring 3/16” x 2-5/8” i.d.

9                       154599 Diffuser Assembly

10                     156355 Piping assy. upper TR-100C, TR-140C (1)
11                      156344 Piping assy. upper inlet TR-100C, TR-140C
12                      156354 Piping connecting assy. upper TR-140C
13                      154412 Nut 2 in. internal
14                      153430 Tank & ft. assy. TR-100C 8-1/2 in. btr thd.-blk
14                      153431 Tank & ft. assy. TR-140C 8-1/2 in. btr thd.-blk

15                      15-4453 Hub lateral TR-100C/TR-140C
16                      154596 Foot 24 in. dia. TR-100C/TR-140C
18                      154412 Locknut 2 in. internal

19                      154416 Spacer 2 in. internal
20                     154492 O-ring 2 in. bulkhead
21                      154408 Spacer 2 in. external
22                     154538 Gasket 2 in. bulkhead
23                     154405 Bulkhead 2 in.

24                     154492 O-ring 3/16 in. x 2-5/8 in. i.d.
25                     152220Z 2 in. sand drain (Left-hand thread)
26                     154871 Cap thd 1-1/2 in.
27                     154527 Wrench 8-1/2 in. closure

28                     154807 Piping assy. lower TR-100C
28                     154489 Piping assy. lower TR-140C
29                     150036 Connector air relief tube (3)
30                     273071 Screw #14 18-8 TR-100C (1)

31                      154437 Tube air relief TR-100C (2)
31                      150041 Tube air relief TR-100C (3)
31                      154438 Tube air relief TR-140C (2)
31                      150042 Tube air relief TR-140C (3)

32                     154507 Spacer air vent strainer TR-100C 6-3/4 in.
32                     154508 Spacer air vent strainer TR-140C 10-5/16 in.
33                     154578 Strainer air relief (2)
—                      150035 Strainer air relief (3)
—                      274494 O-ring valve adapter

36                     271092 2 in. thd. adapter kit for inst. w/o valve (pair)
37                     271094 1-1/2 in. thd. adapter kit for inst. w/o valve (pair)

1 Different quantities required for TR-100C and TR-140C Filters.
2 Use on filters manufactured before 11-1-99.
3 Use on filters manufactured after 11-1-99.
