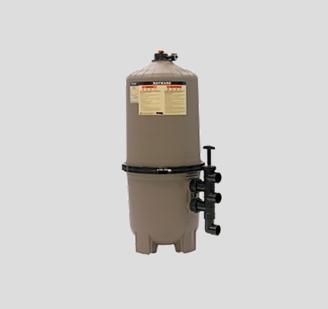

Hayward Pro-Grid Vertical Grid D.E. Filters

Pro-Grid vertical grid D.E. filters provide superior water clarity, efficient flow and large cleaning capacity for pools and spas of all types and sizes. Patent pending automatic Relief Valve purges any entrapped air automatically during filter operation. Strong
PermaGlass XL filter tanks made from durable glass reinforced co-polymer to meet the demands of the toughest applications and environmental conditions. Valve not included.

Turn Over        Effective
Model                Filteration Design           (In Gallons)
Number            Area Flow Rate*               8 hr            10 hr
DE3620              36 ft. 72 GPM                       34,560          43,200
DE4820             48 ft. 96 GPM                       46,080          57,600
DE6020             60 ft. 120 GPM                      57,600           72,000
DE7220             72 ft. 144 GPM                       69,120           86,400
*Determined by pump size and piping system hydraulics. 2” piping is recommended for flow rates of 90 GPM or more.

Model             D.E.                                   Dimensions
Number         Required                Width (1)         Height
DE3620         4-1/2 lbs.                   23”                  34-1/2”
DE4820         6 lbs.                         23”                  40-1/2”
DE6020         7-1/2 lbs.                   23”                  46 1/2”
DE7220         9 lbs.                          23”                  52-1/2”

All filters include pressure gauge, air relief valve and 1 1/2” drain plug.  (1) Above dimensions are for filter only. Add 12” for 1 1/2” and 14” for 2” multiport valves. Add 7” for 2” slide valve.

SP0740DE         2” D.E. valve
SP0710XR50     1.5” D.E. valve

Must order valve separately for above filters.
